As well as outstanding black level and brilliant colour reproduction, LUGH stands out above the rest
for its class leading brightness level of 1,3500nit. This value is achieved by an uniquely efficient LED
design with a comparatively low power consumption. Powerful 16 bit processing in combination with
INFiLED‘s usual precise and robust mechanical design ensures that LUGH is suitable for almost any
application.

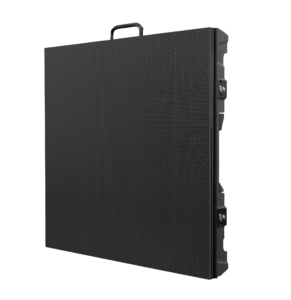

LUGH
Features
- High brightness
- Impressive black level
- Shock resistant LEDs at the edges
- 16 bit HDR processing
- XR-capable
| Model designation | LUGH |
| Pixel pitch | 2,6 mm |
| Brightness | 1.500 nit |
| Pixel density | 192 x 192 px/Cabinet, 147.456 px/m² |
| LED-type | Black Face und Black Body High Brightness SMD, |
| AOB in the edge area | |
| Lifespan LED | 100,000 hours |
| Viewing angle | 160° horizontal; 160° vertical |
| Processing | Novastar |
| Bit depth | 16 bit |
| Power consumption | Maximum: 145 W/Cabinet; 580 W/m² |
| Average: 48.3 W/Cabinet; 193.3 W/m² | |
| Input voltage | 110 – 240 V / 50 – 60 Hz |
| Ambient temperature | -10 bis 45 °C |
| Operating humidity | 10 to 90 % |
| Cabinet dimensions | 500 x 500 x 76 mm (W x H x D); (=0.25 m²) |
| Weight | 8.8 kg/Cabinet; 35.2 kg/m² |
| Max. height (hanging/stacking) | 18 Cabinets / 14 Cabinets |
| Maintenance | Front/Rear Service |
| Curving | concave(-): -1°, -2°, -2,5°, -5° / convex(+): 5° |
| Protection | IP30 |
| Certification | CE, RoHS, EMV Klasse A, ETL, FCC, LVD |
